1973-1979 Ford F-series Truck Wiring Diagrams



1973
  COMING SOON!




1974
F100/F350 - 8 Pages (Complete)

[Page 01]
 3259 x 2400 - 765K
[Page 02]
 3547 x 1955 - 902K
[Page 03]
 3817 x 1936 - 980K
[Page 04]
 3786 x 2279 - 918K

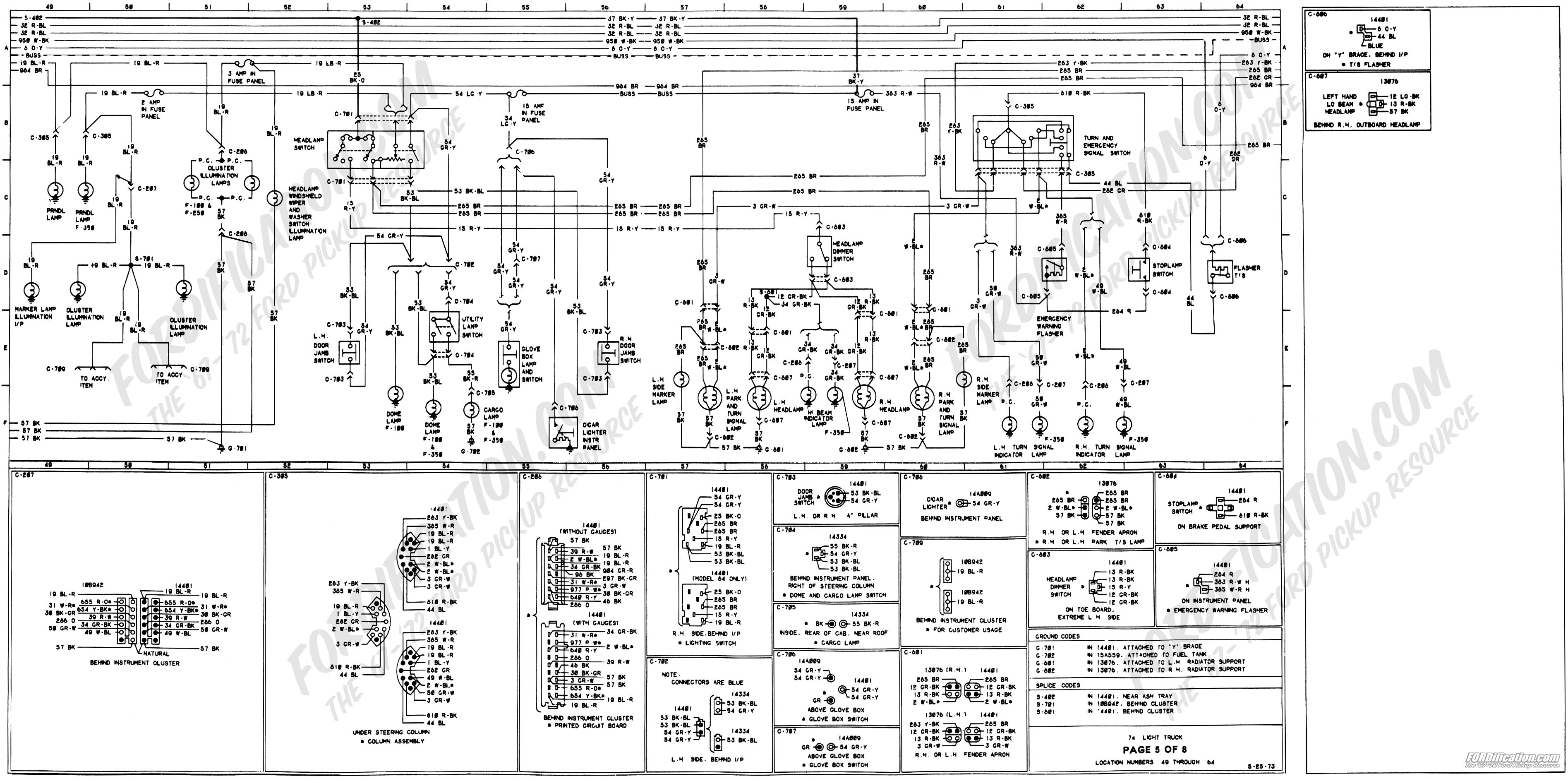

[Page 05]
 3790 x 1887 - 861K
[Page 06]
 3771 x 2269 - 994K
[Page 07]
 3786 x 2267 - 866K

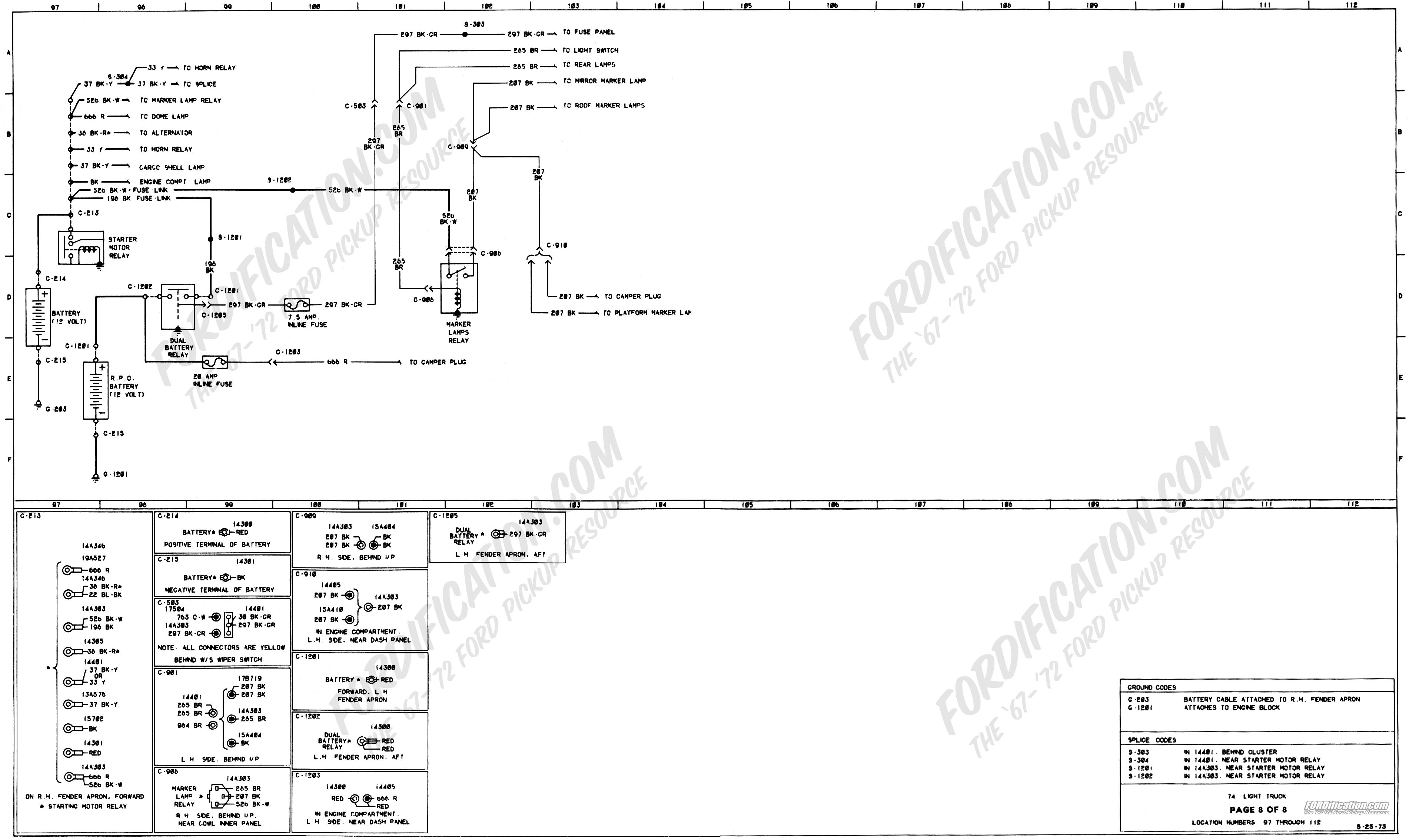

[Page 08]
 3803 x 2268 - 529K

1975
F100/F350 - 10 Pages (Complete)


[Page 01]
3838 x 2330 - 1MB
[Page 02]
3942 x 2217 - 1.76 MB
[Page 03]
3867 x 2208 - 1.90 MB

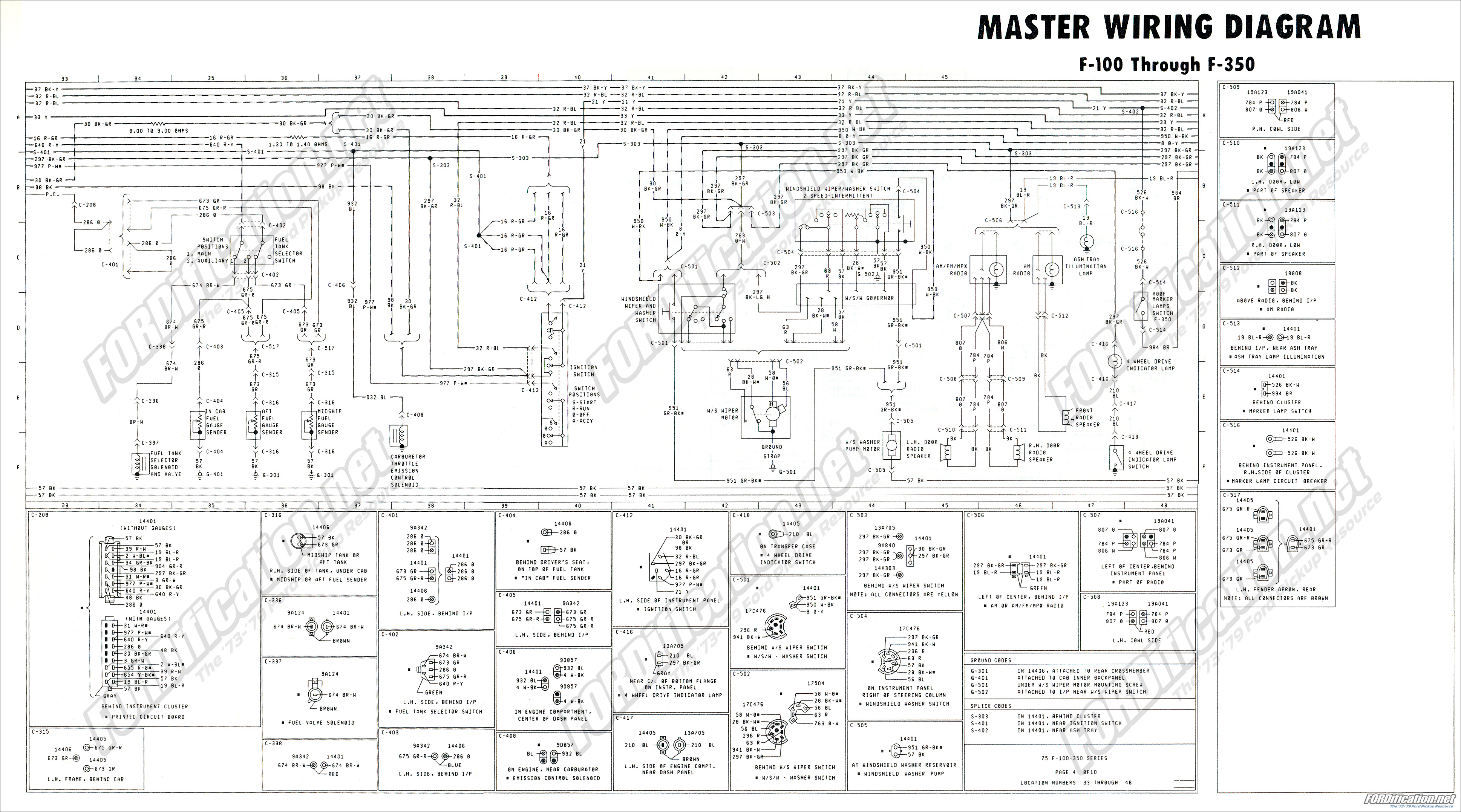

[Page 04]
3876 x 2155 - 2.18 MB

[Page 05]
3919 x 2143 - 1.71 MB

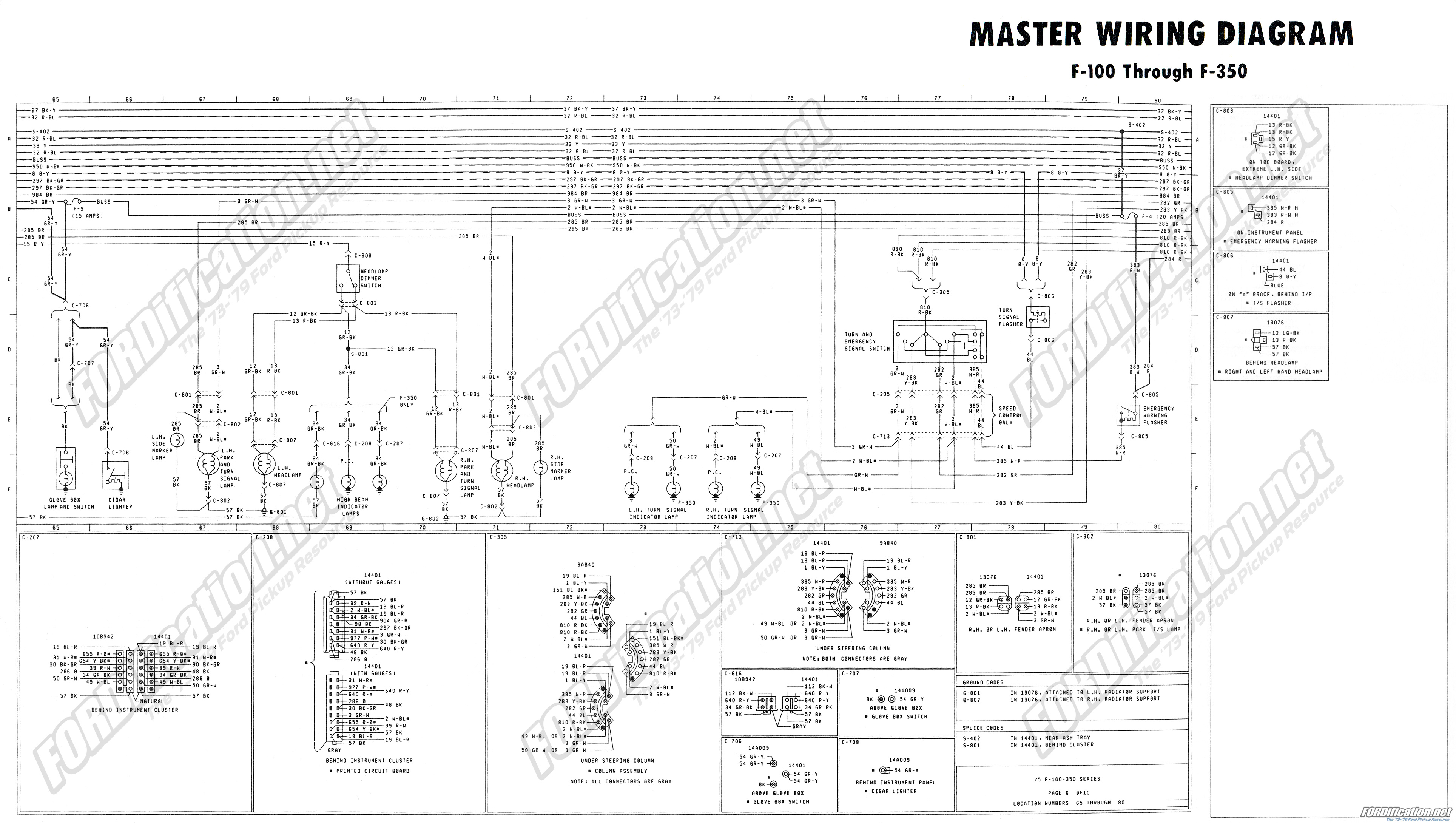

[Page 06]
3856 x 2179 - 1.52 MB

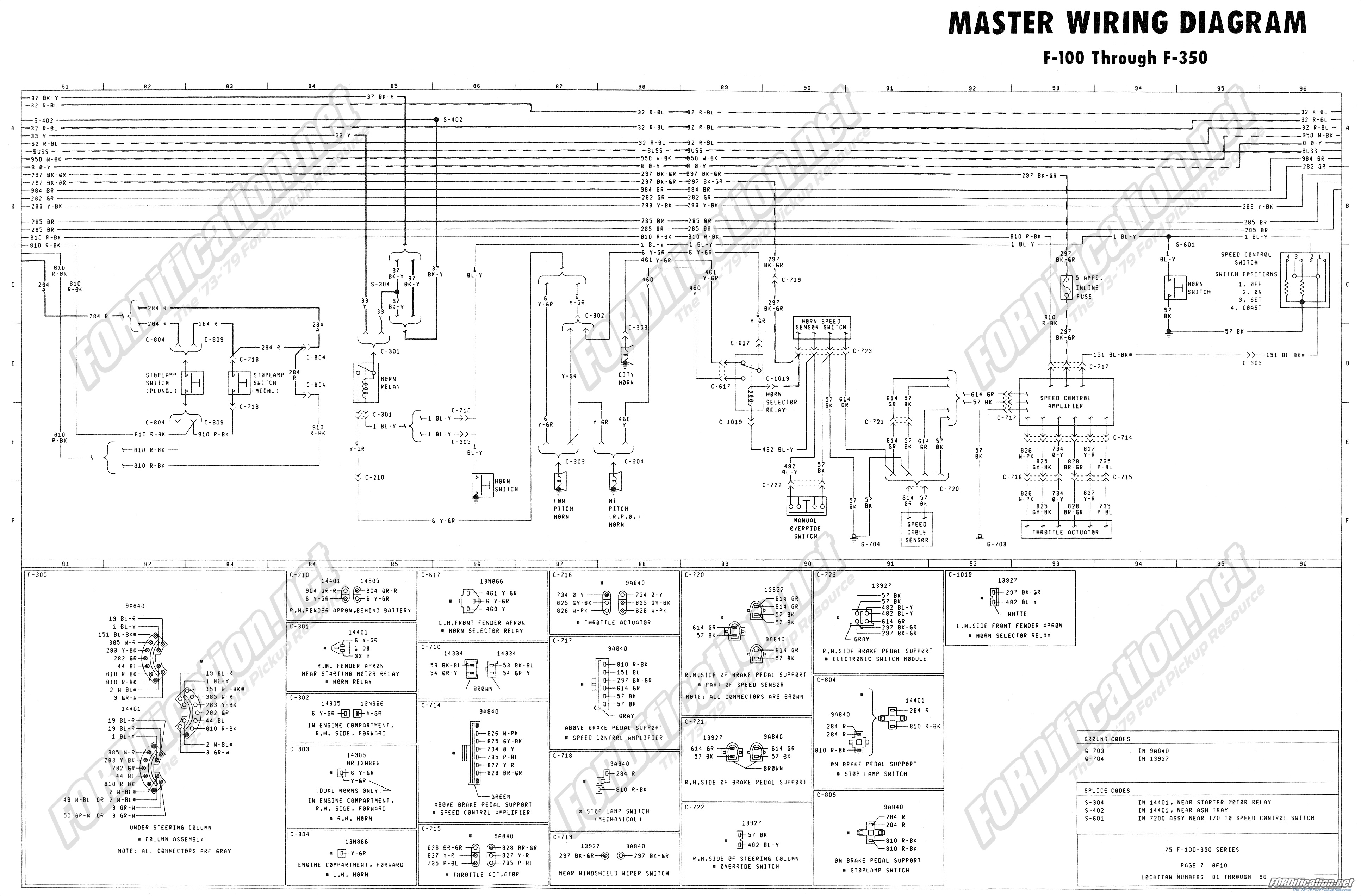

[Page 07]
3864 x 2544 - 1.75 MB

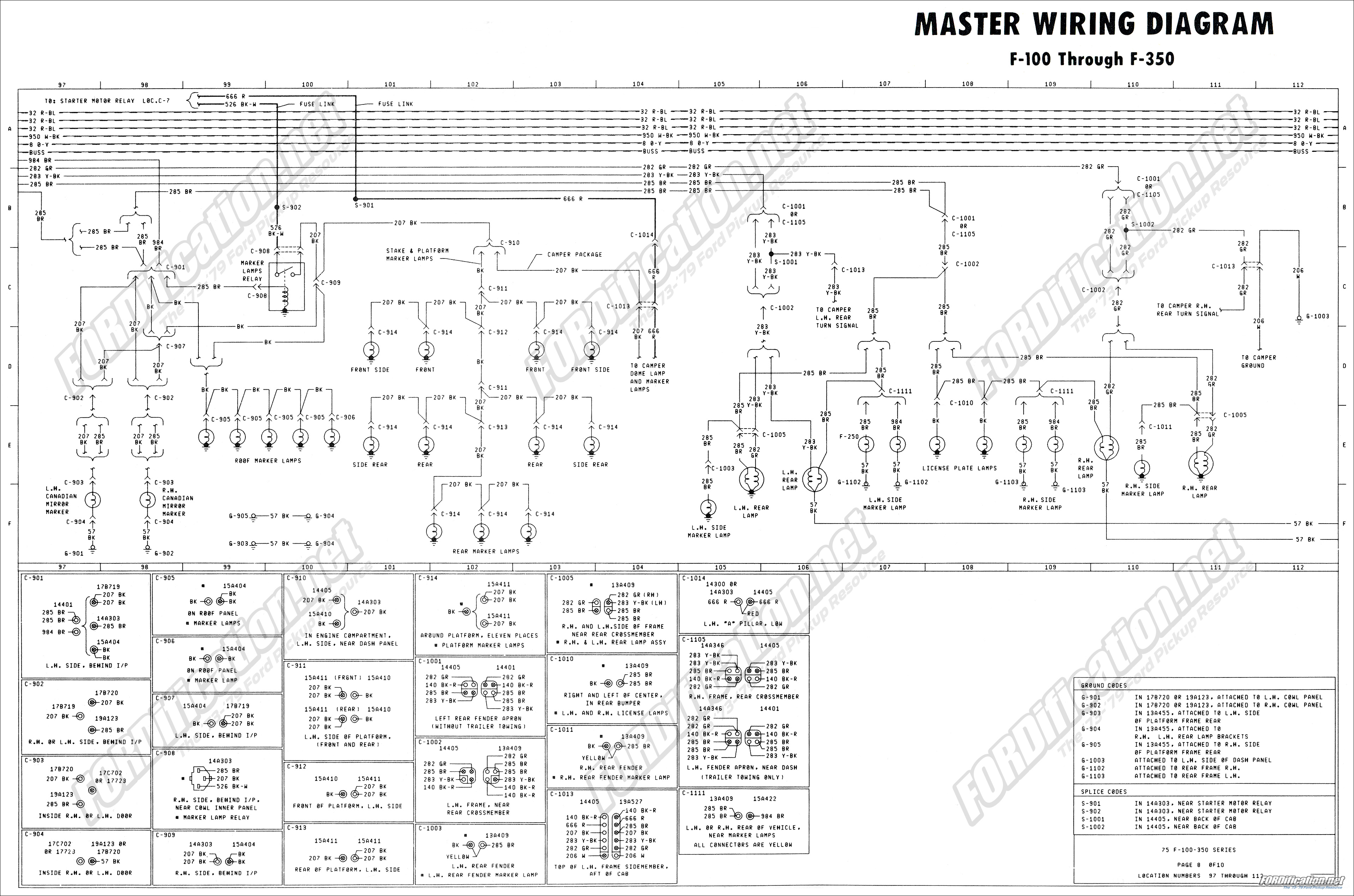

[Page 08]
3835 x 2538 - 1.76 MB

[Page 09]
3833 x 2525 - 1.60 MB

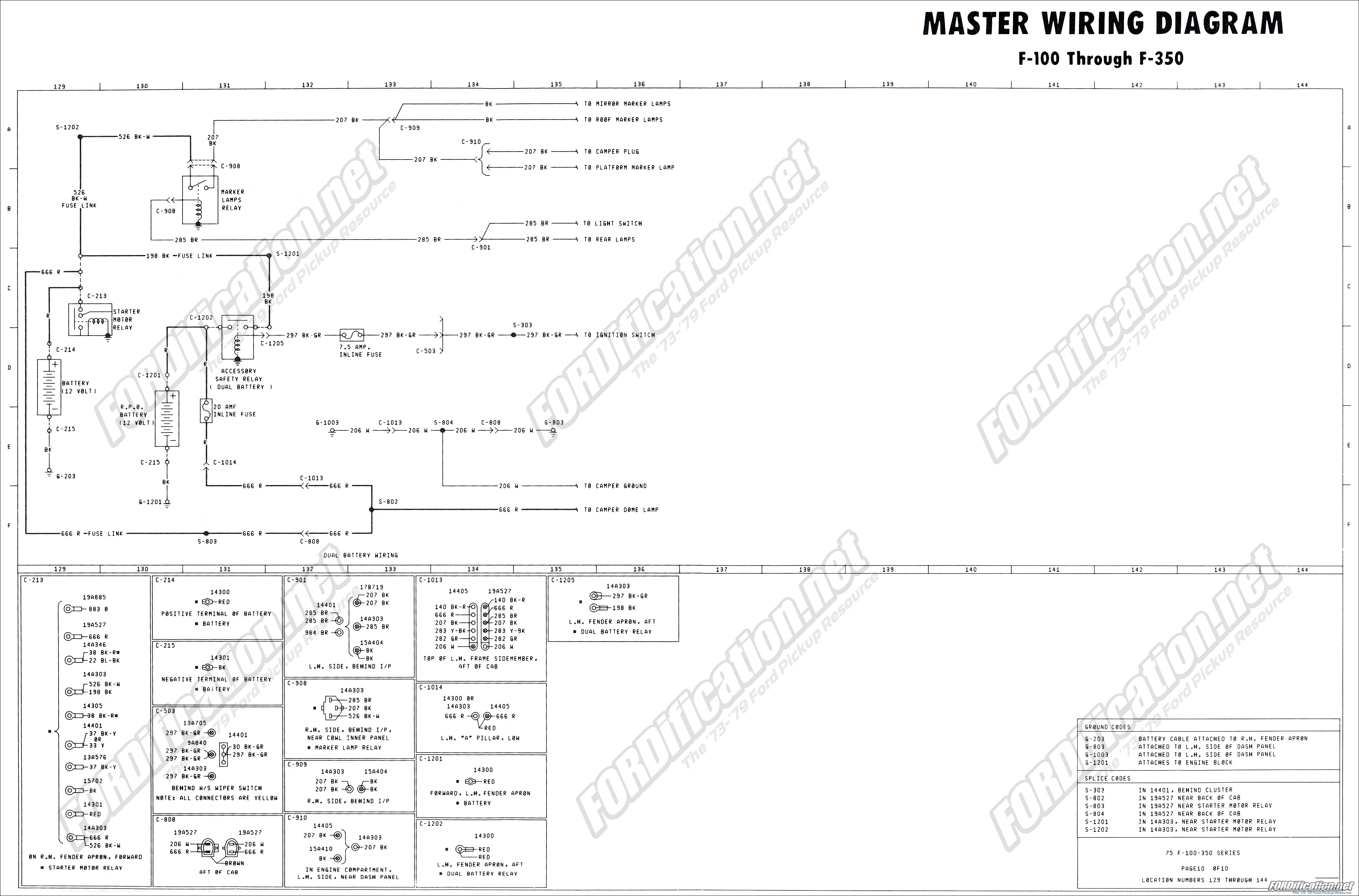

[Page 10]
3834 x 2529 - 1.10 MB

1976
F100/F350 - 9 Pages (Complete)

[Page 01]
3824 x 1941  -  609 KB

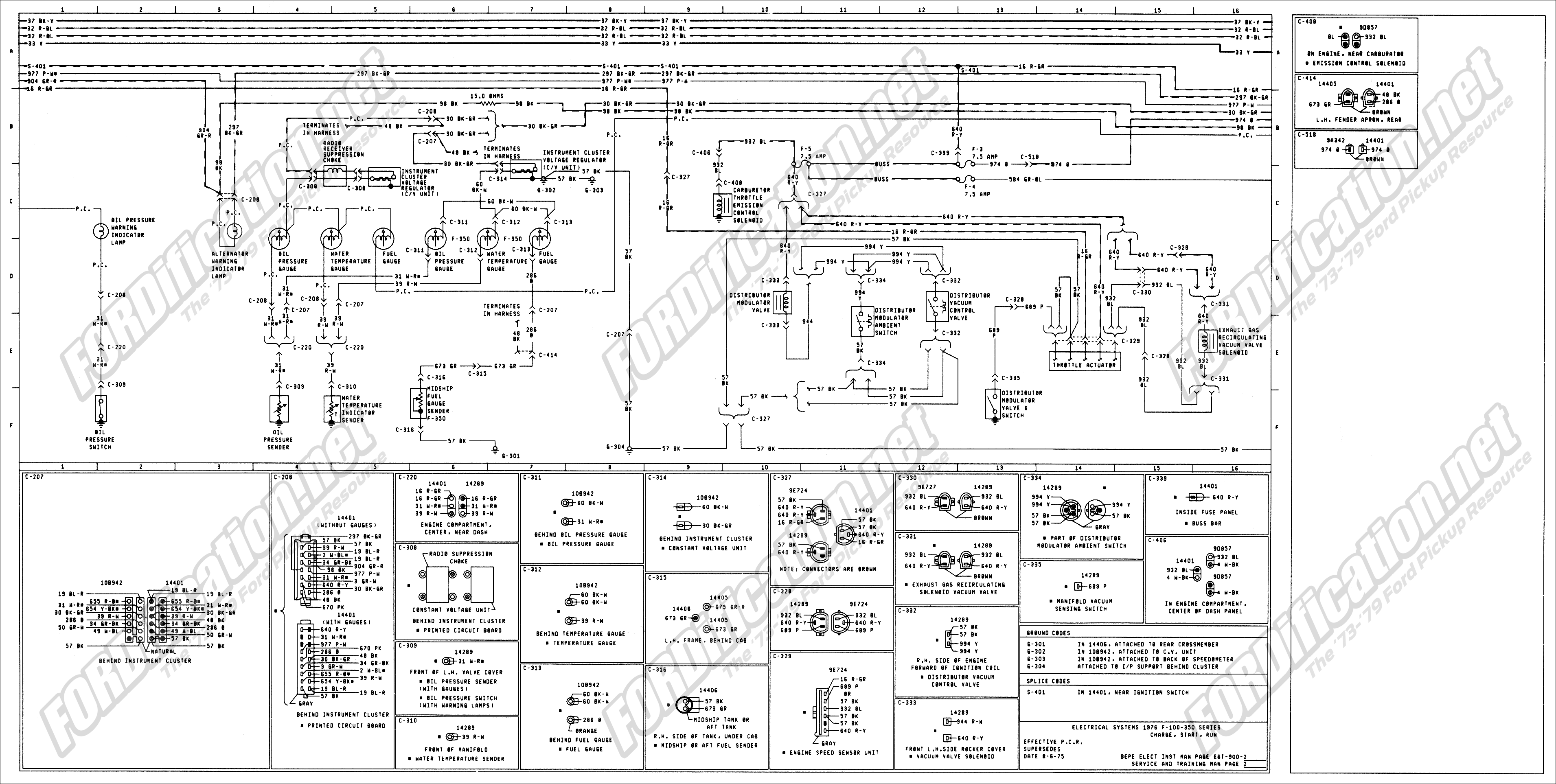

[Page 02]
3822 x 1926  -  537 KB
[Page 03]
3774 x 1907  -  665 KB
[Page 04]
3785 x 1922  -  555 KB


[Page 05]
3798 x 1919  -  501 KB
[Page 06]
3834 x 2339  -  545 KB

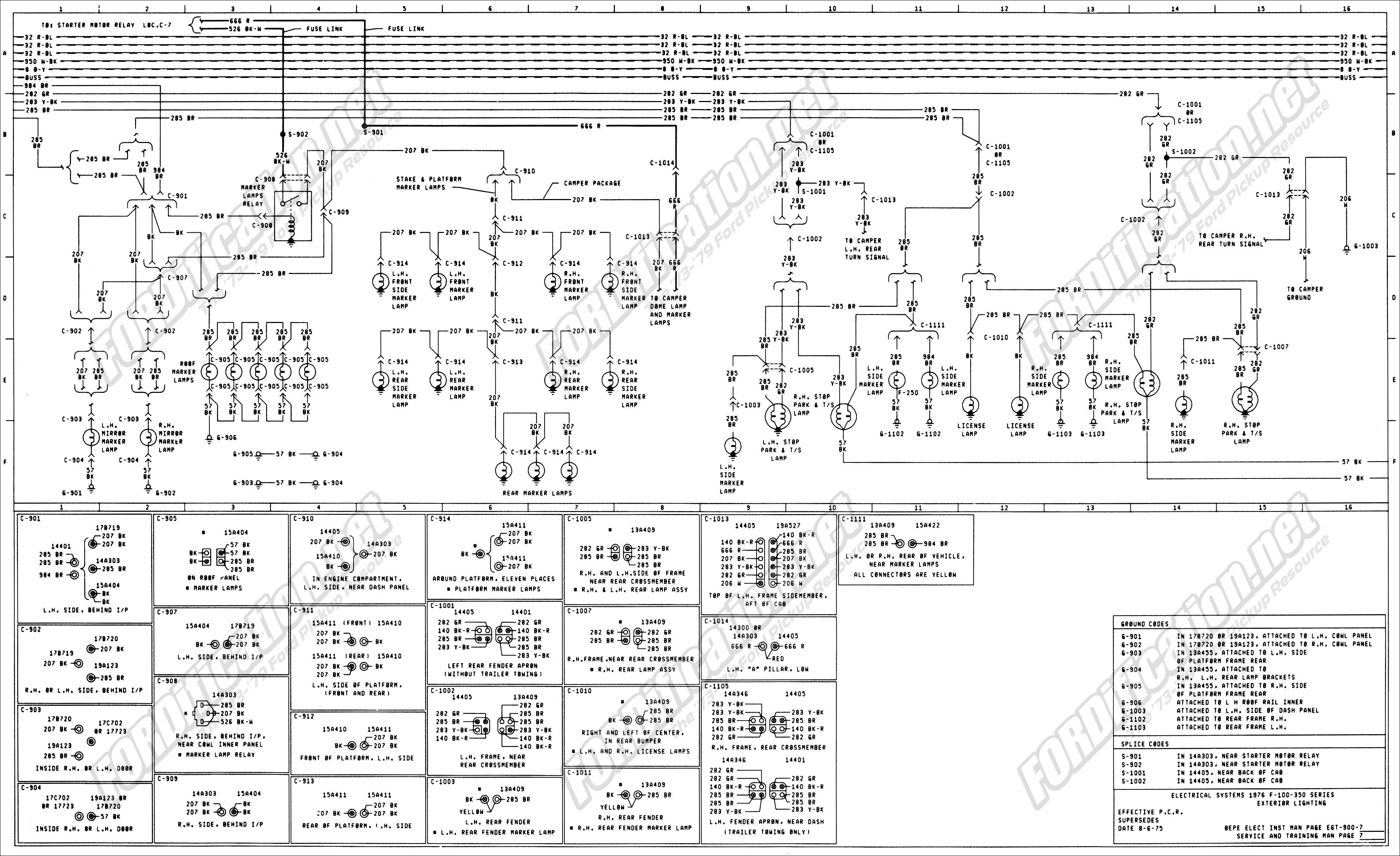

[Page 07]
3825 x 2340  -  886 KB

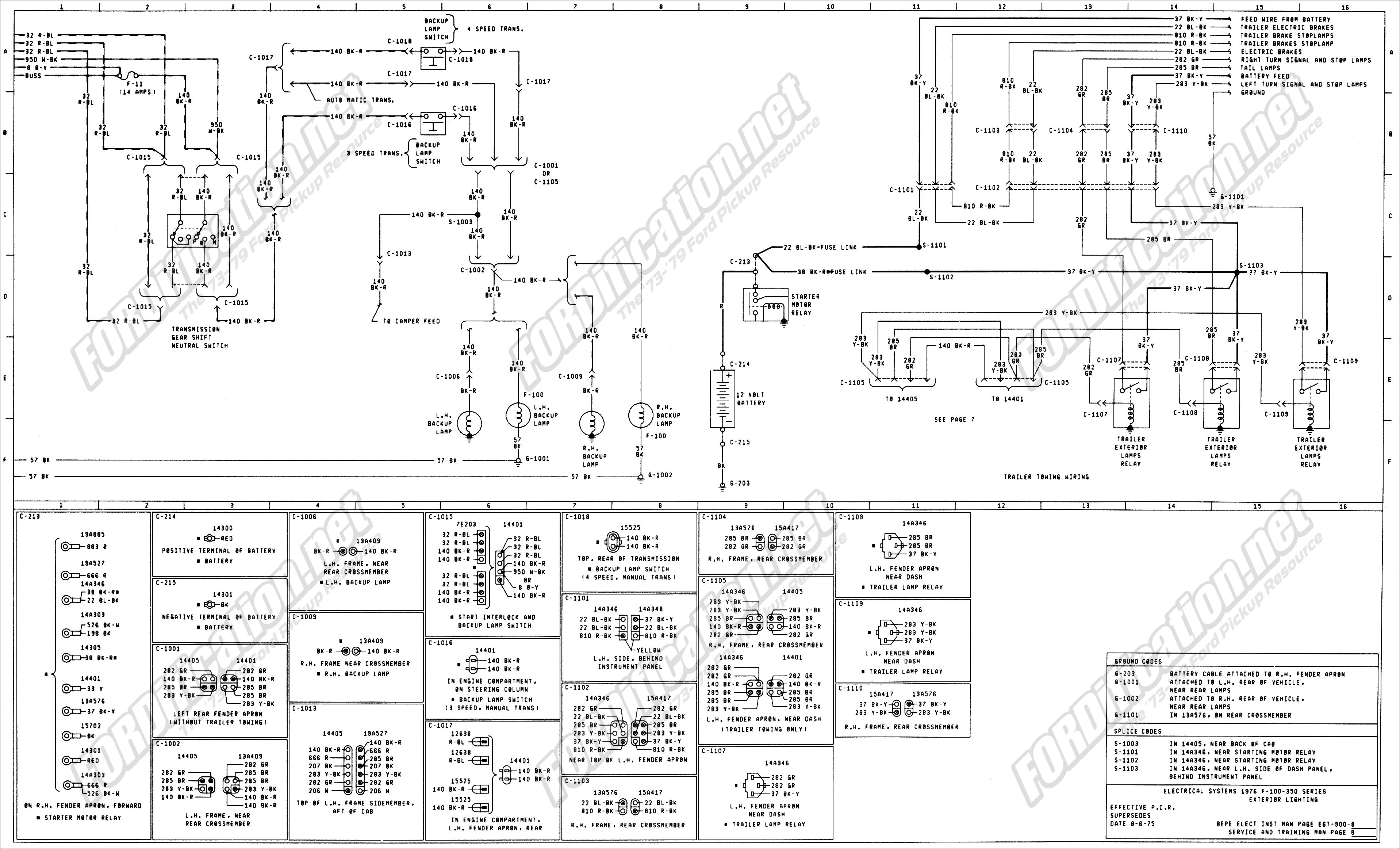

[Page 08]
3835 x 2325  -  560 KB

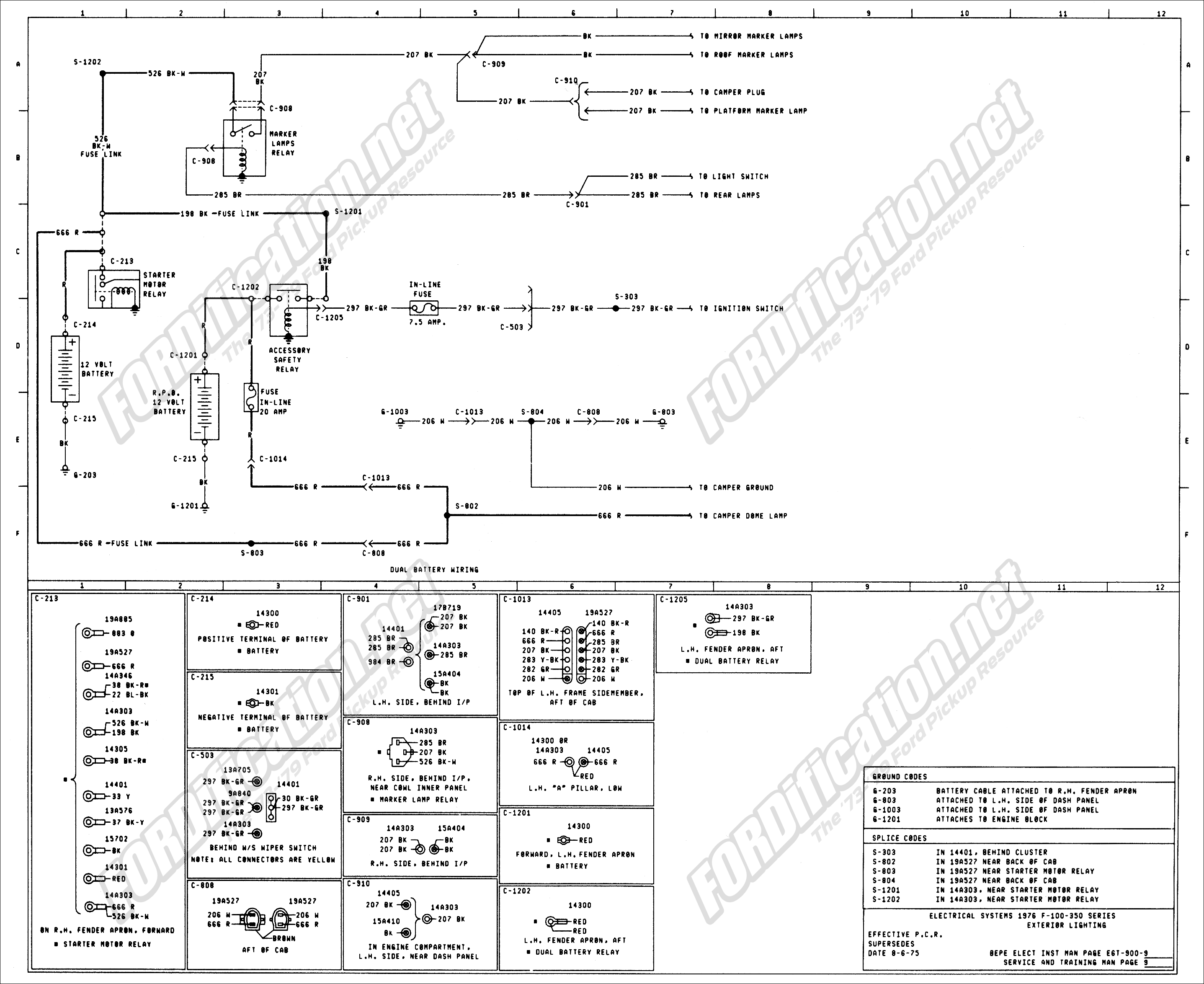

[Page 09]

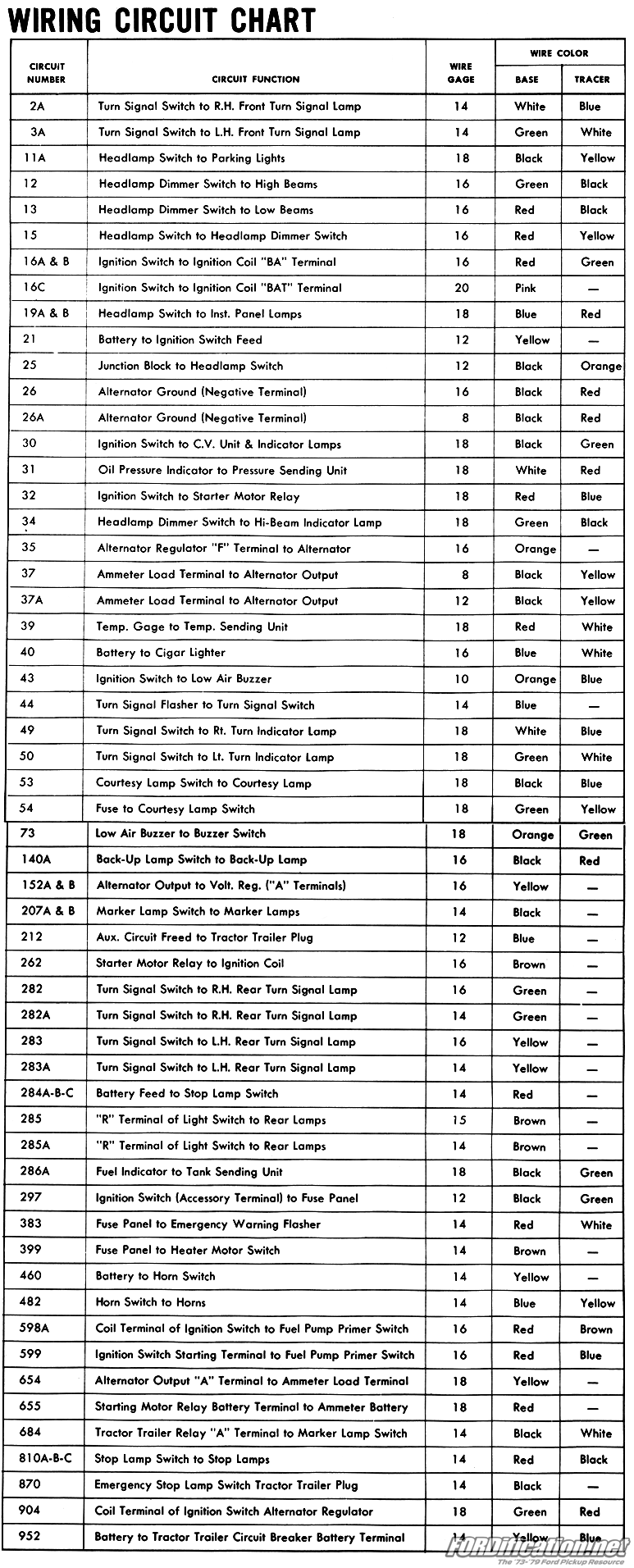

2875 x 2349  -  356 KB		 - Wiring Circuit Chart (1976)

1977
  COMING SOON!



1978
F100/F350 - 10 Pages (Complete)

[Page 01]
3628 x 2200  -  861 KB

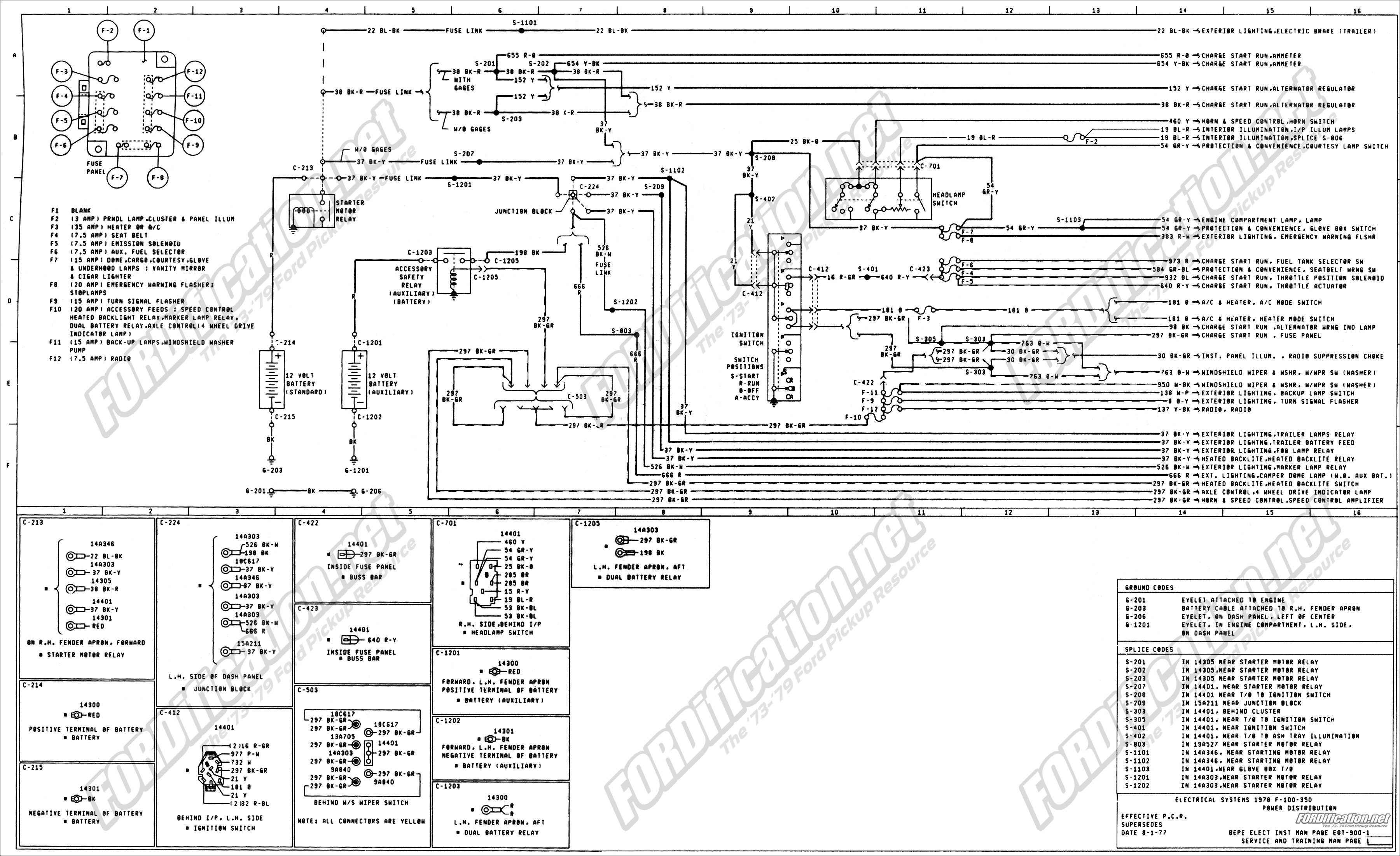

[Page 02]
3601 x 2202  -  867 KB
[Page 03]
3715 x 1868  -  918 KB
3694 x 1896  -  843 KB

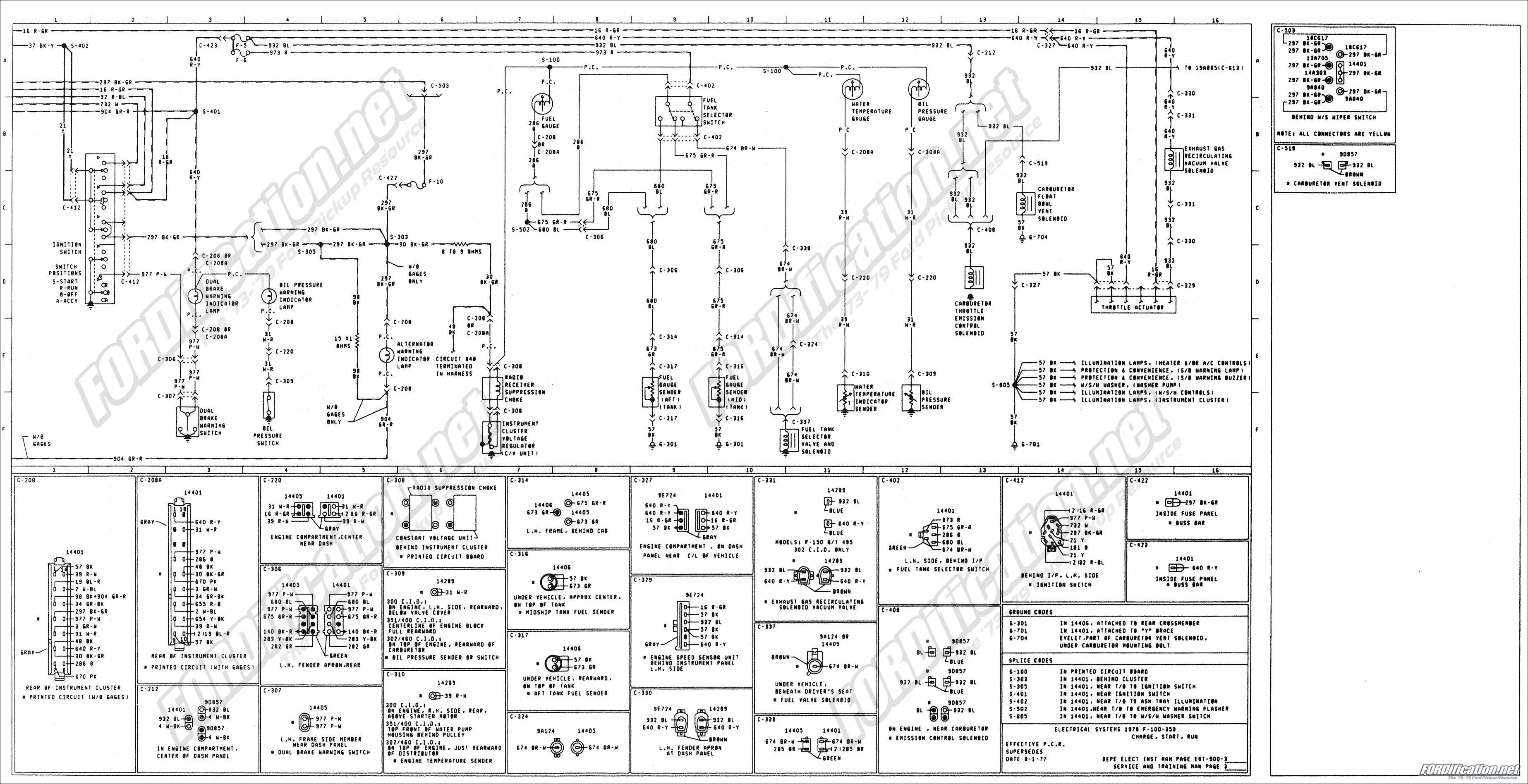

[Page 04]


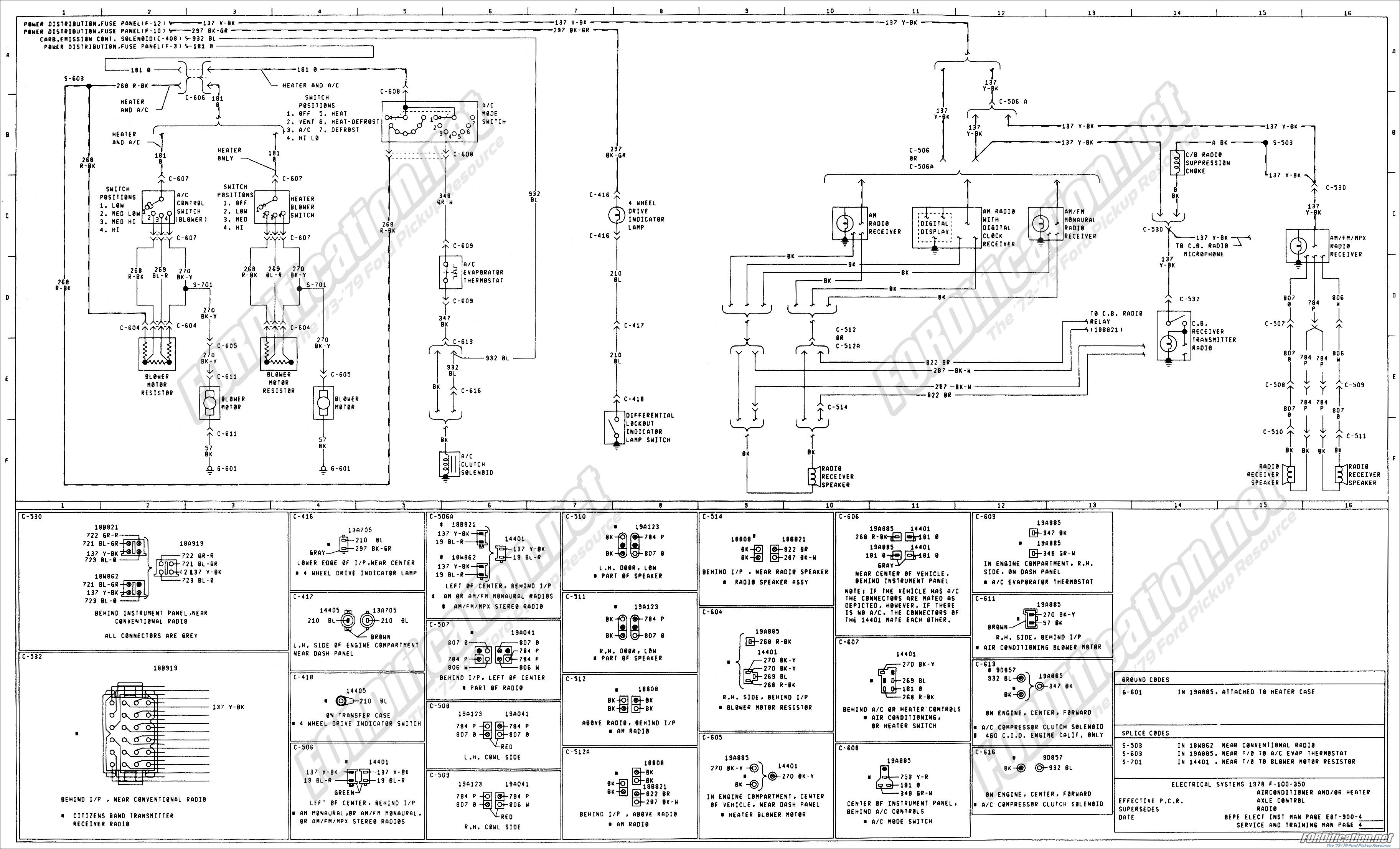

[Page 05]
3649 x 2212 - 580K

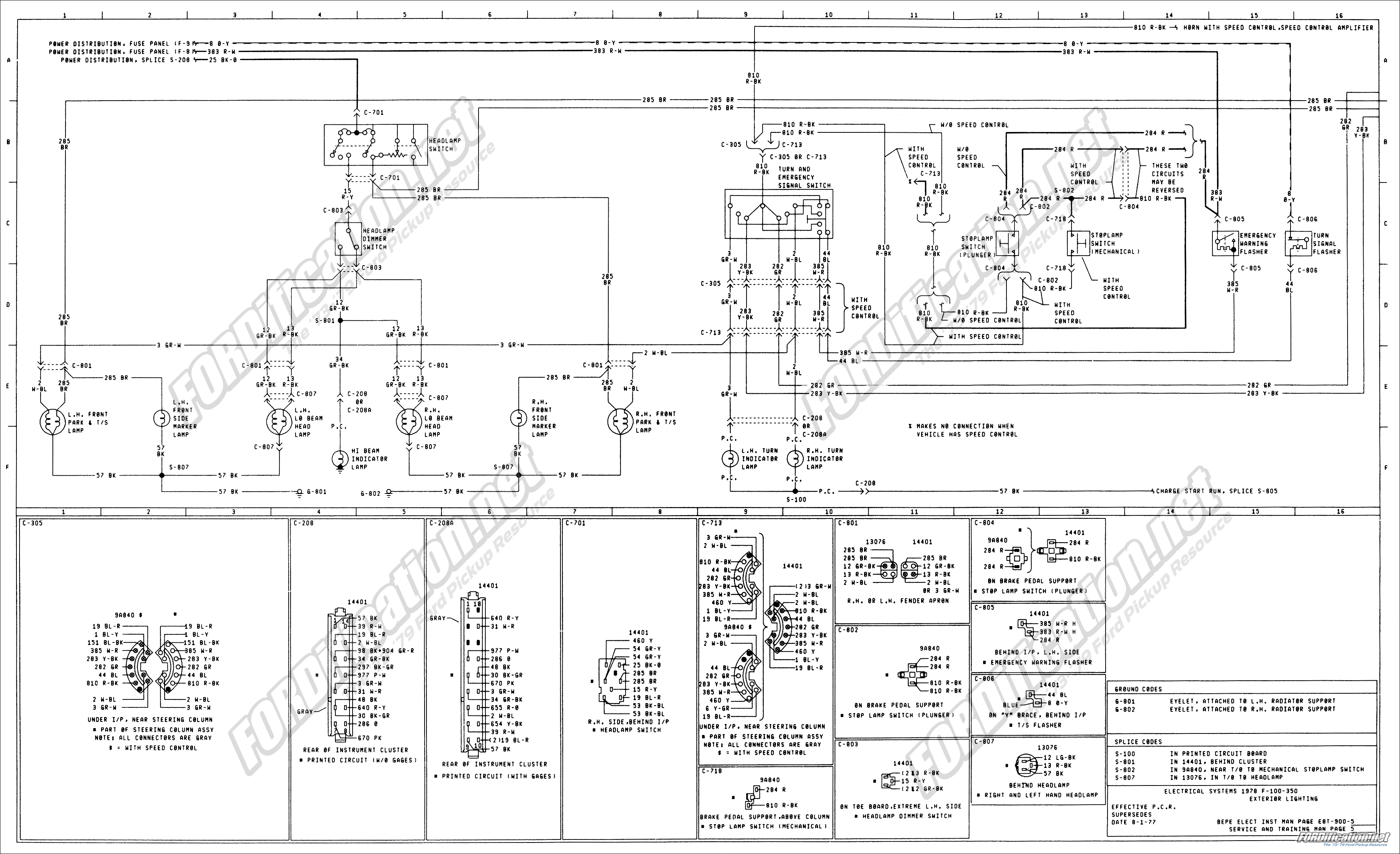

[Page 06]
3657 x 2232 - 708K

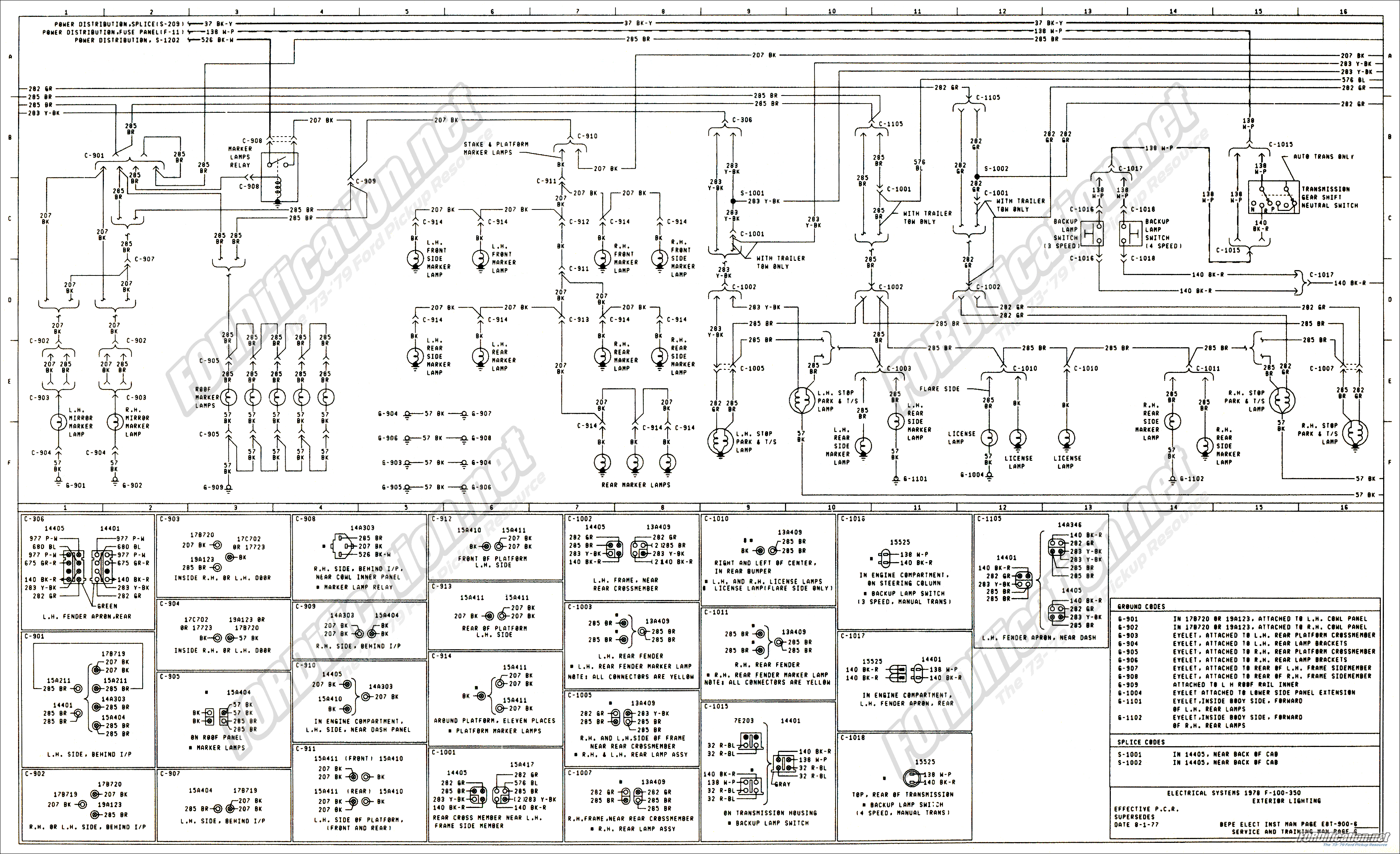

[Page 07]
3651 x 2226 - 836K

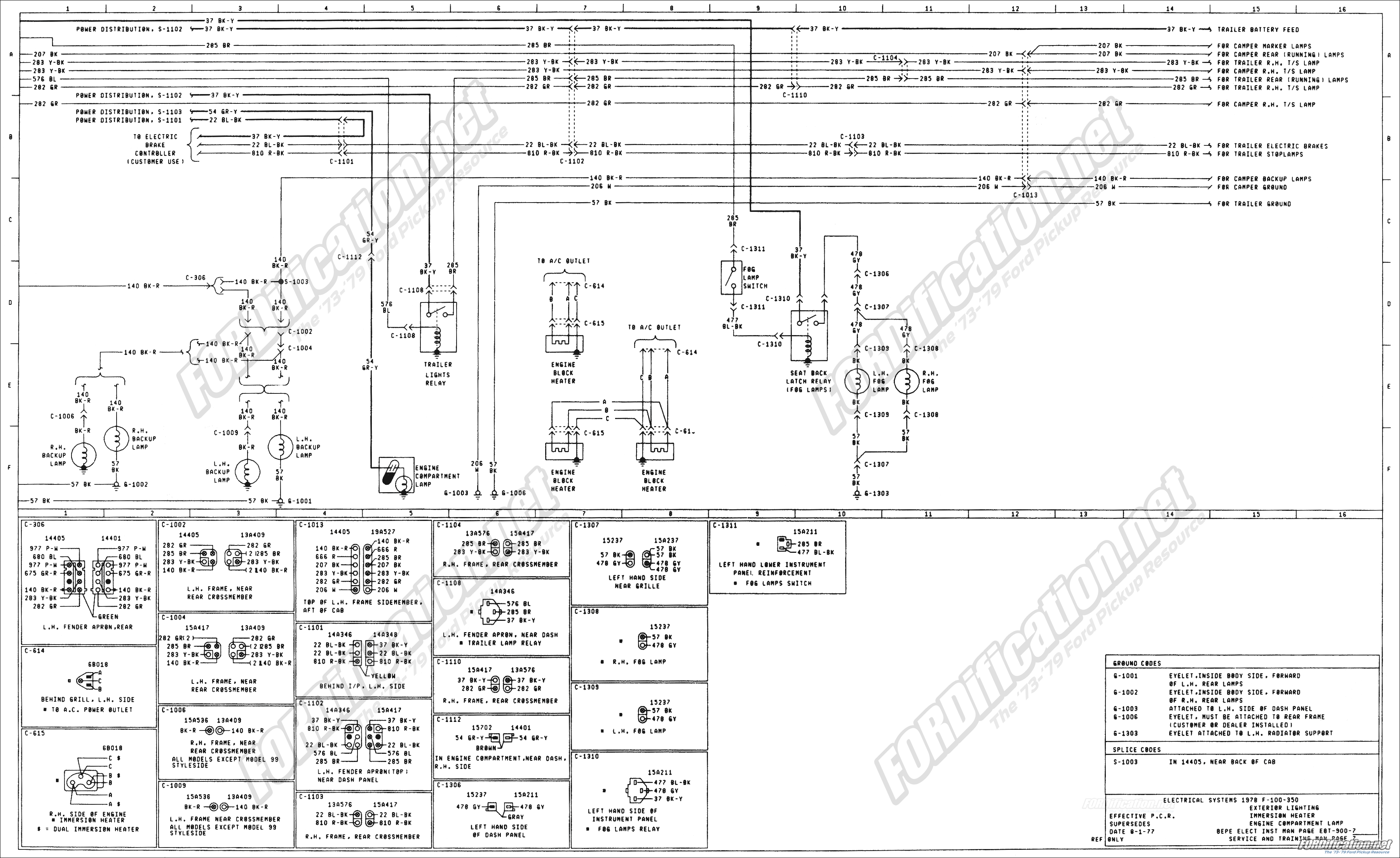

[Page 08]
3603 x 2207 - 756K


[Page 09]
3698 x 1860 - 872K
[Page 10]
3635 x 2203 - 850K

1979
F100/F350 - 9 Pages (Complete)

[Page 01]
2766 x 1688  -  646 KB
[Page 02]
2788 x 1401  -  589 KB
[Page 03]
3741 x 1888  -  868 KB
[Page 04]
3718 x 2258  -  808 KB


[Page 05]
3721 x 2257  -  856 KB
[Page 06]
3716 x 2258  -  975 KB
[Page 07]
3715 x 2271  -  868 KB
[Page 08]
3710 x 1879  -  852 KB


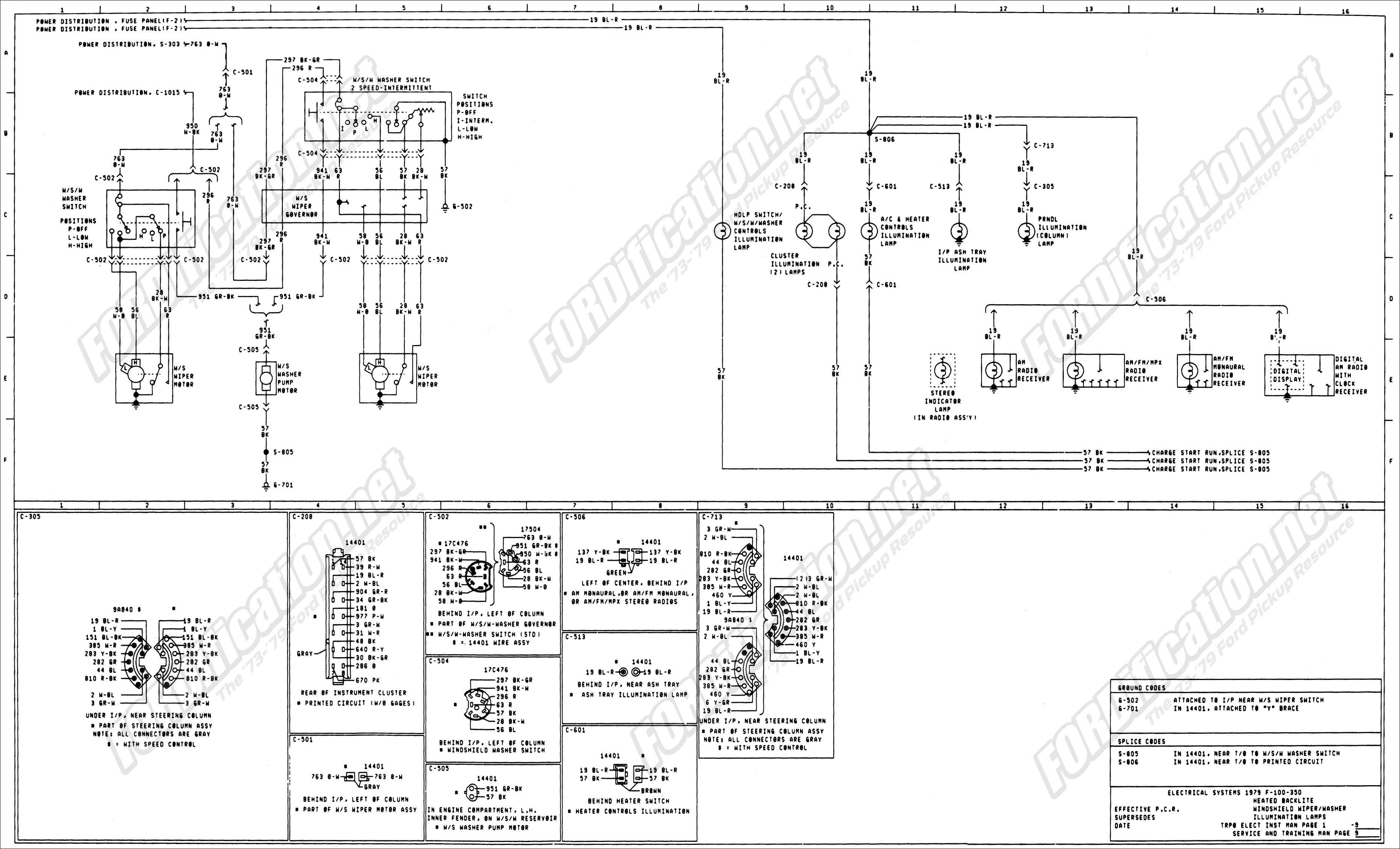

[Page 09]
3727 x 2261  -  681 KB

Misc. Wiring Schematics & Diagrams

Checking windshield wiper switch continuity
1979 F100-F350 intermittent wiper switch
Ford truck wire color and gauge chart
